ILO Mini

Le plus petit de la famille ILO

The shortest member of the ILO profiles family.

Avec son esthétique réussie, Ilo Mini offre des nouveaux horizons pour un parti pris résolument moderne de vos bureaux, hotels, restaurants, musées et autres circulations.


Sa petite taille lui permet de s’intégrer dans les espaces les plus exigus ; développé avec des optiques extensives ou intensives pour s’adapter à vos besoins d’éclairage et de mise en valeur.



Type de montage



  • Encastré
  • Track

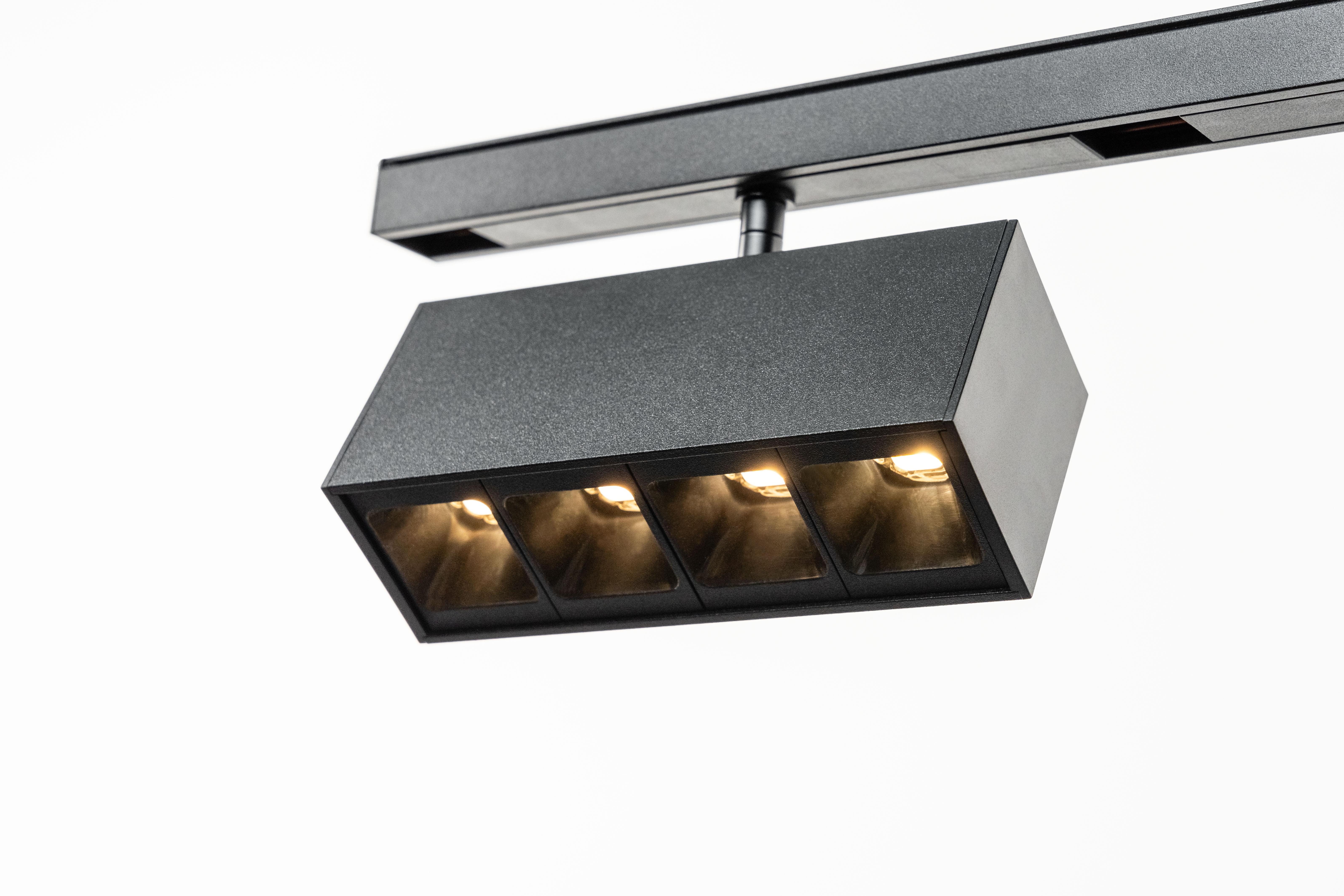

  • Track with hinge

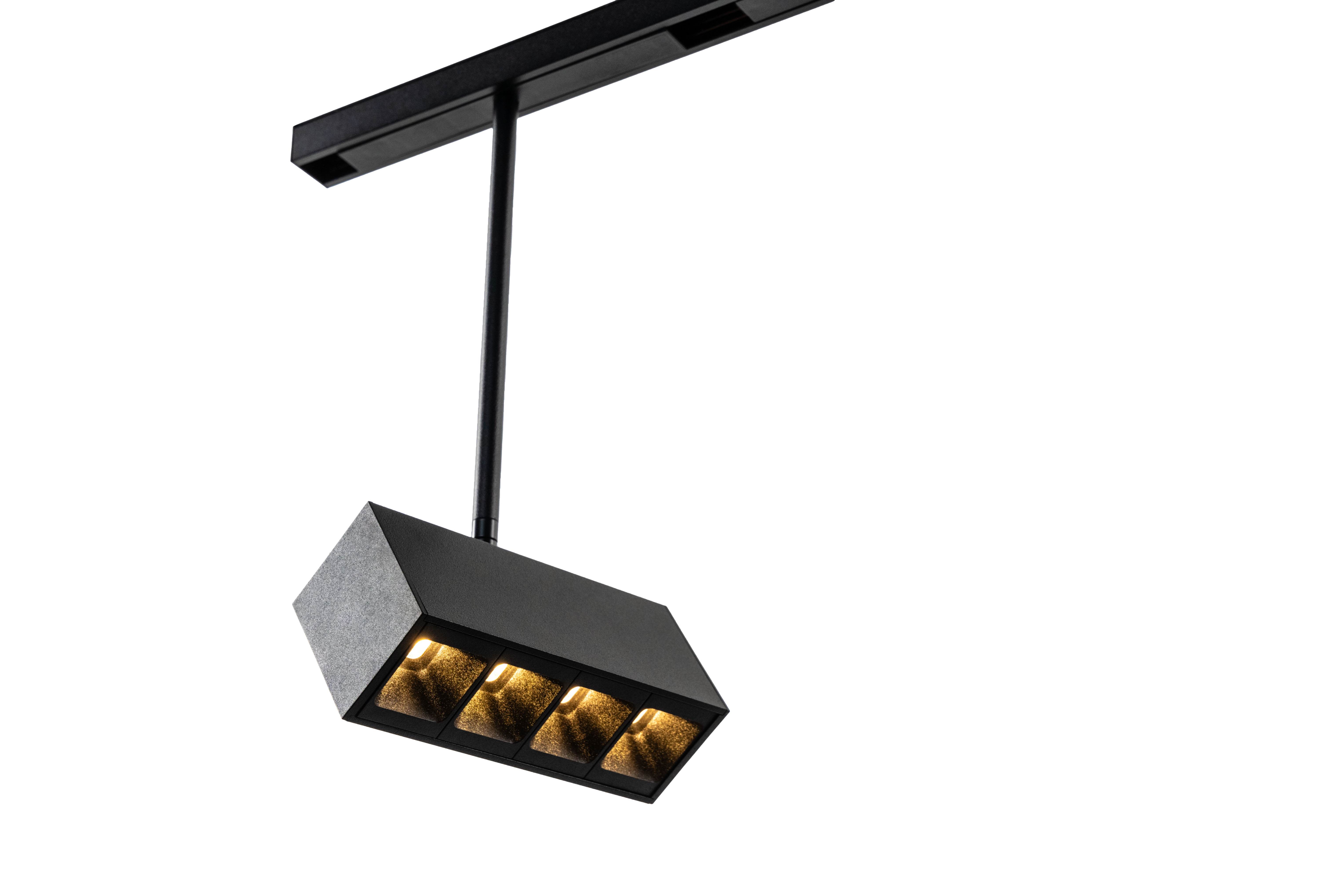

  • Track with rod
  • Applique

  •







    Caractéristiques techniques



    Profilé

    Profilé en aluminium anodisé de couleur blanche (ral 9016) ou noir (ral 9005)
    coated finish in white RAL 9016 and black RAL 9005

    Reflectors

    Diffuseurs en PMMA de couleur blanche ( ral 9016) ou noir ( ral 9005)

    Couleurs blanc/blanc , noir / noir , blanc /noir , noir / blanc
    Efficacité lumineuse  125 lm/W
    IRC  CRI >80 / CRI > 90 (on request)
    Cohérence des couleurs MacAdam Step 3
    Flux lumineux optique intensive (30°) 200 Lm par optique (70mm)
    optique extensive (60°) 280 Lm par optique (70mm)
    température de couleur 2700K / 3000K / 4000K / 5000K ou blanc dynamique ( TW) de 2700 à 5000K
    Gradation DALI
    Optique Modular intensive (30°) / Modular extensive (60°)
    Options

    Optics:
    Optique Asymétrique ( mini wallwasher)
    noire Opale
    Prismatique
    Opale

    Installation

    Fixing system with steel wire springs for an easy installation.

    Rated life L80 B20 at 100.000 h, Ta=25 °C ambient temperature





    Optics type

  • Modular
  • Asymétrique
  • Noir
  • Opale
  • Prismatique
  • Black Opal

    Black Opal



    Dimensions des profilés




    Single Product Configurator



    Mounting Type
    Fixing Type
    Optique
    Dimension
    Rod Length
    Puissance
    Color Temperature
    Color
    Reflector Color
    Get Order Code
    or

    DOWNLOAD

    DATASHEET

    LDT

    BROCHURE

    MANUAL

    DIMENSIONAL SKETCH

    DOWNLOAD ALL

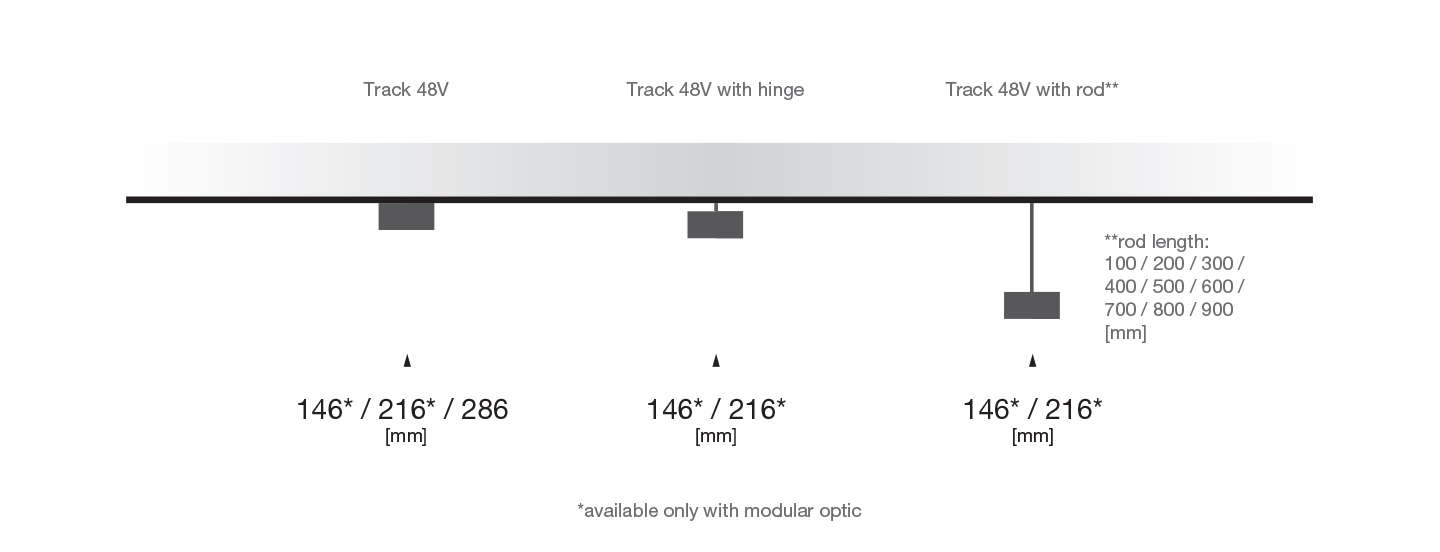

    Dimensions



    Encastré





    Recessed Trimless





    Track





    Track with hinge





    Track with ROD
