ILO Curve
Curved connectable lighting fixtures
ILO Curve brings together refined design and technical precision in a versatile linear lighting system. Combining straight and curved sections, it creates seamless lighting compositions that follow the architecture of a space. From offices and corridors to lobbies, reception areas and hospitality interiors, every composition is tailored to its surroundings.
ILO CURVE empowers you with the versatility to harmoniously combine five unique angles (11.25°, 22.5°, 45°, 60°, and 90°), enabling the creation of a bespoke lighting concept perfectly tailored to the requirements of your space.
Mounting type
Technical data
| Housing |
High-quality aluminium housing with powder-coated finish in black RAL 9005 |
| Sizes |
Arc: 11,25° / 22,5° / 45° / 60° / 90° / 180° Radius: 660 / 1105 / 1460 / 2540 / 2905 mm *see below for combination possibilities |
| Luminary efficiency | 110 lm/W |
| System power | 16 – 31 W/m |
| Colour rendering |
CRI > 80 / CRI > 90 |
| Colour consistency | MacAdam Step 3 |
| Light output | Up to 3300 lm/m |
| Colour temperature (K) |
2700 / 3000 / 3500 / 4000 / 5000 K or TW 2700 - 5000 / 6500 K |
| Rated life | L80 B20 at 100.000 h, Ta=25 °C ambient temperature |
| Lighting control | DALI - 2 / No Dim |

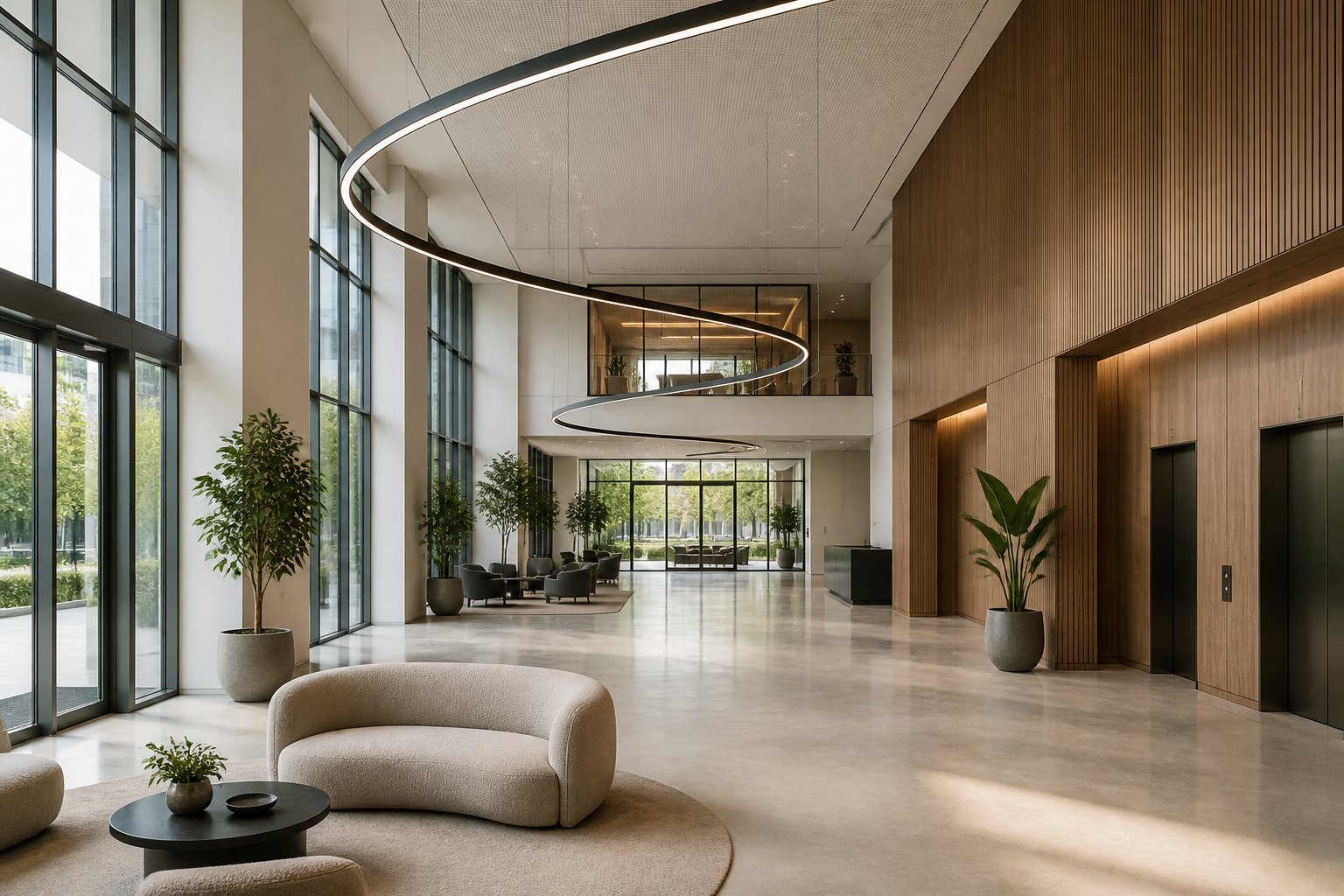

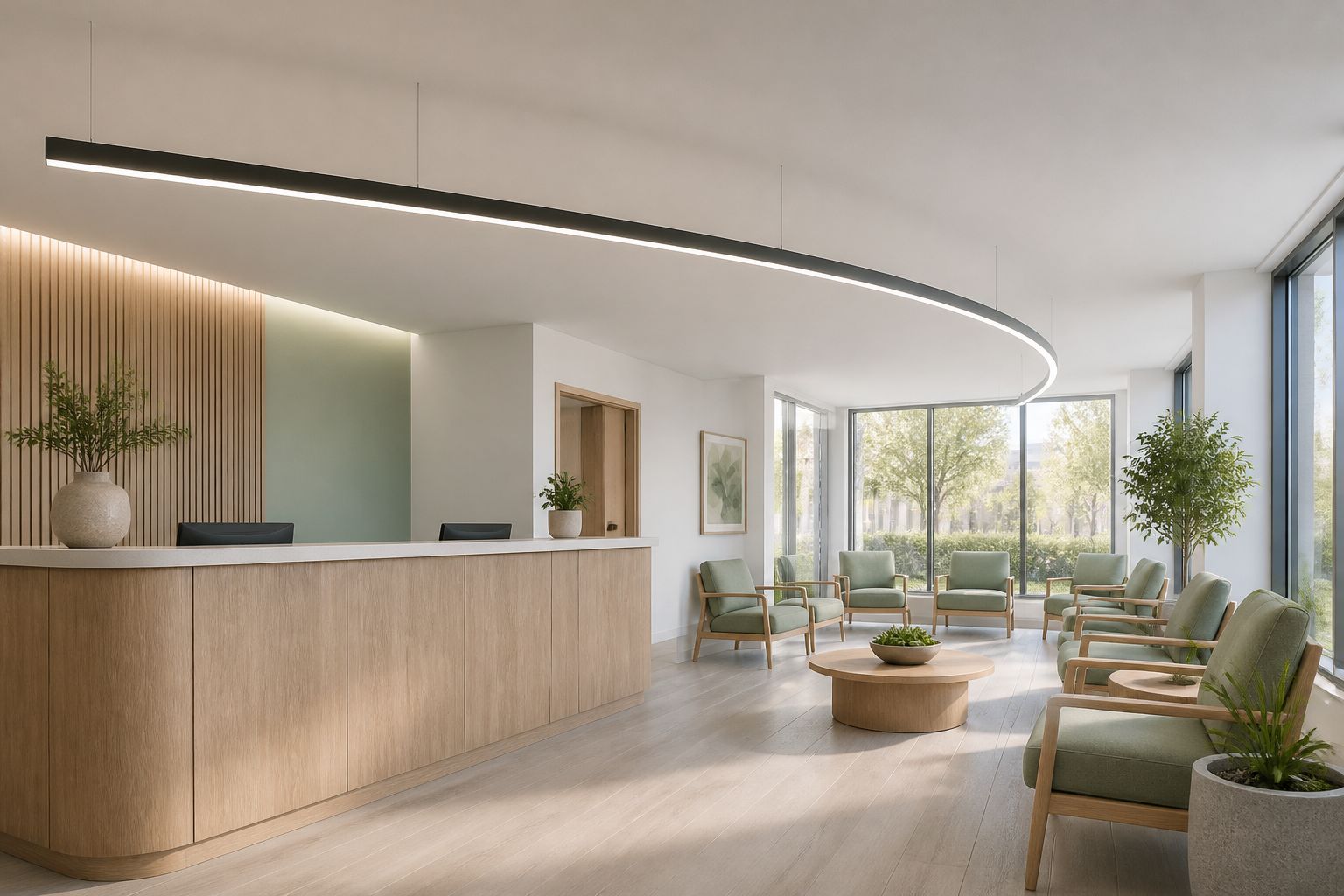

A line that follows your space

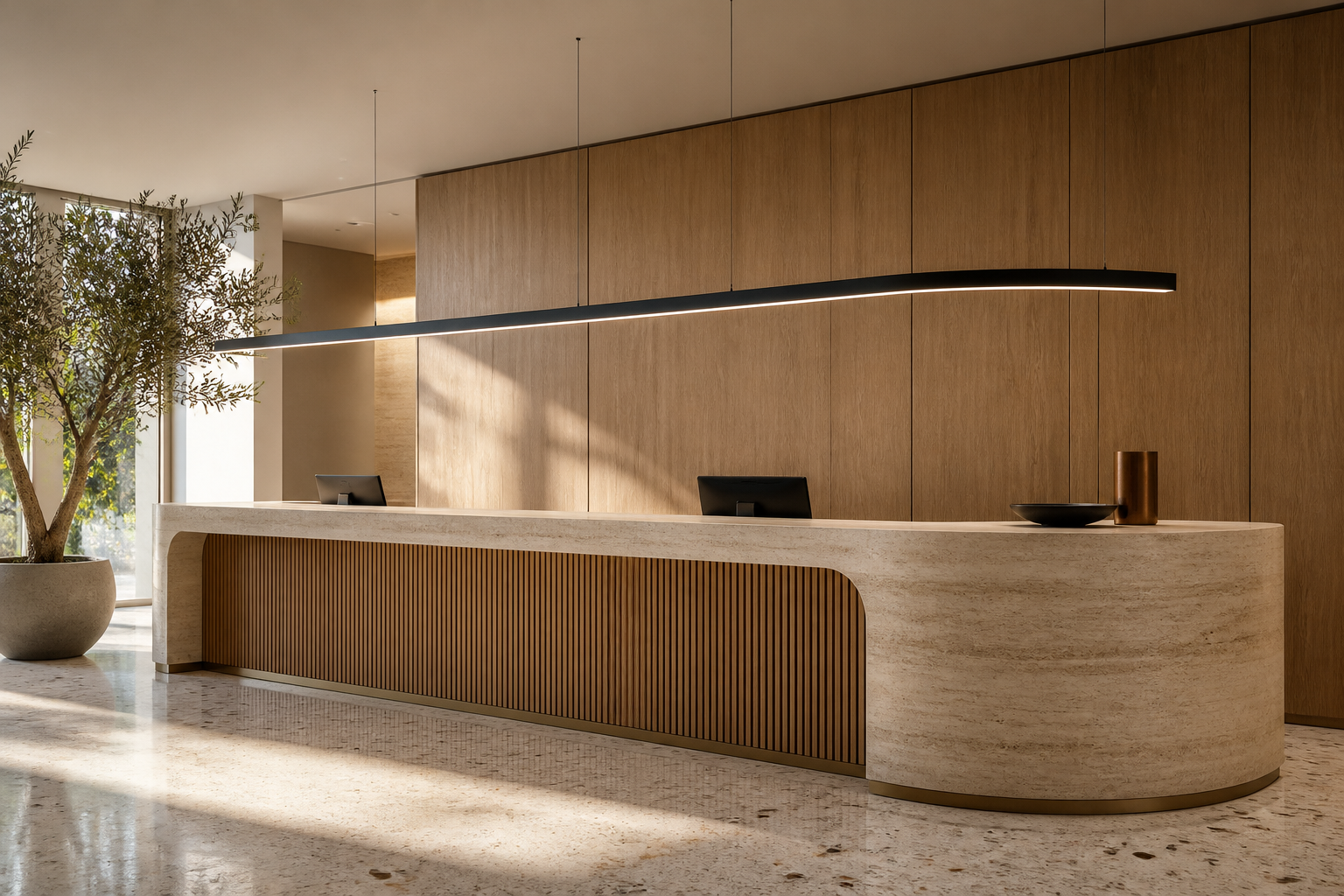

Straight and curved sections join into one flowing composition: a gentle S-curve along a corridor, a reception desk or a continuous line across an open interior. ILO Curve adapts to the architecture, becoming an integral part of the space.

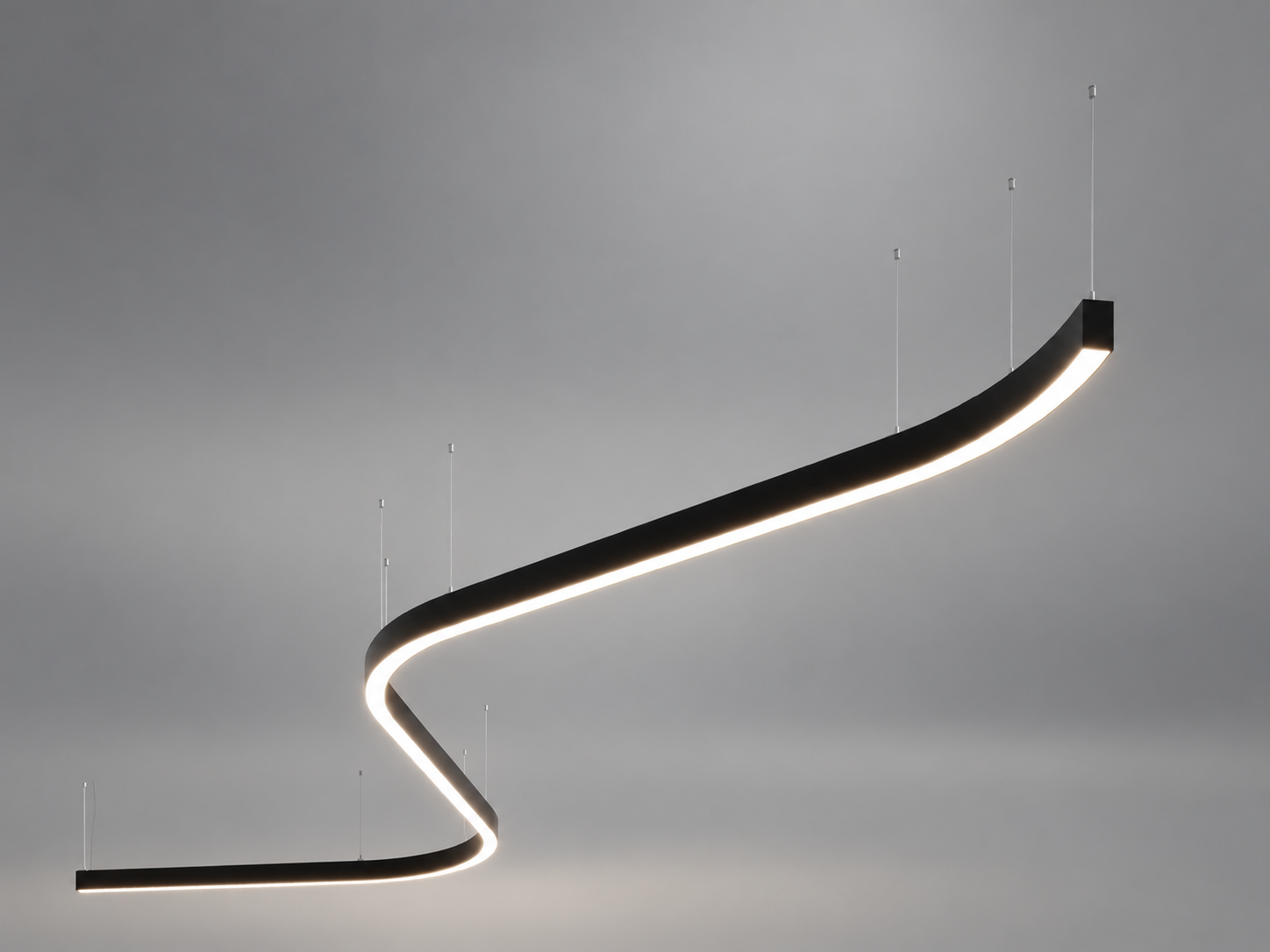

A continuous band of uniform light flows seamlessly through straight and curved sections. The slim aluminium profile and refined edges give even large-scale compositions a light, elegant appearance.

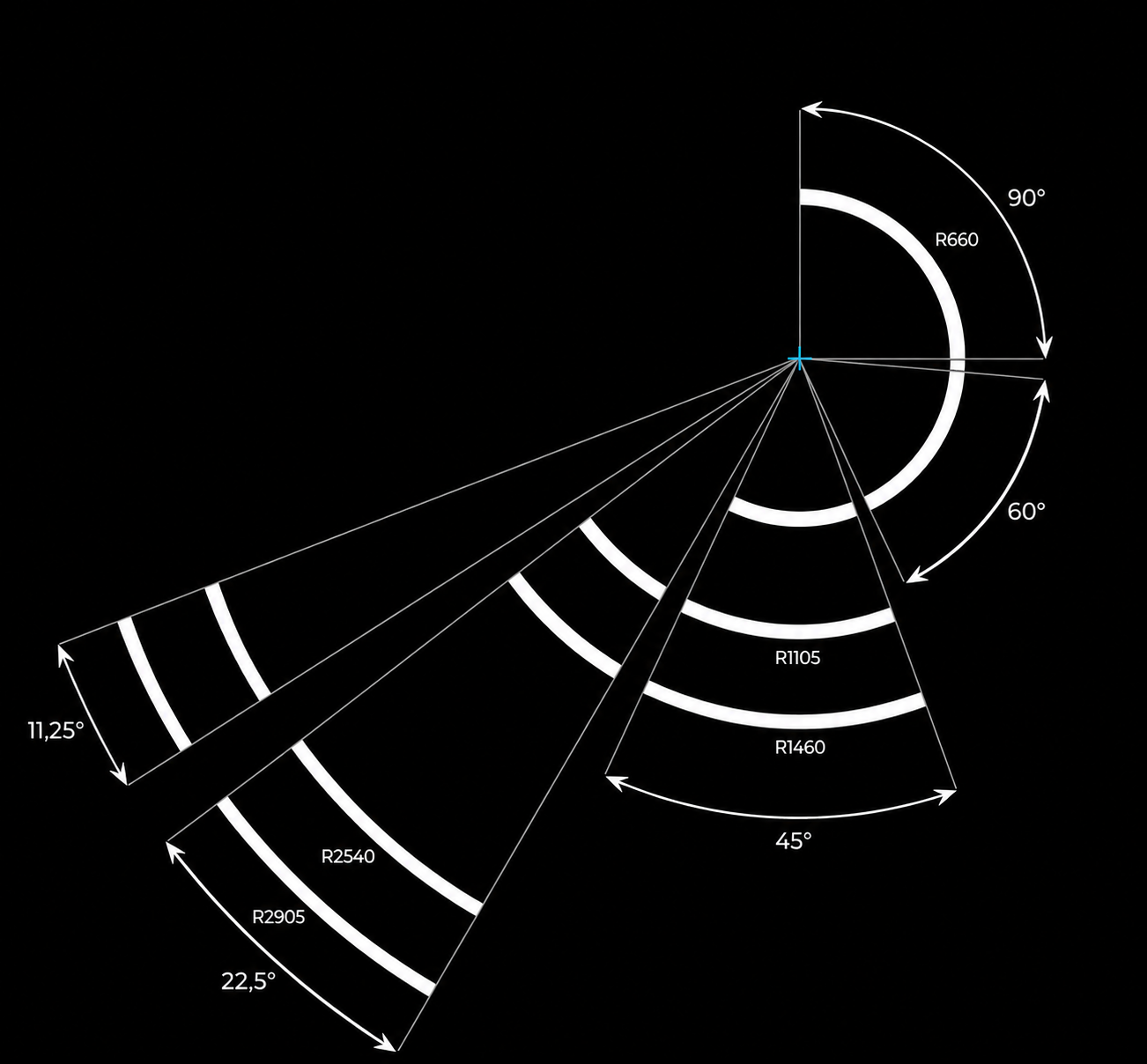

More radii, more freedom
Discover greater design flexibility with a range of curved sections, created to bring more freedom and creativity to lighting layouts.
Available in 11.25°, 22.5°, 45°, 60°, 90° and 180° angles, with radii of 660, 1105, 1460, 2540 and 2905 mm, the collection offers a wide variety of possibilities for shaping light in any space.
