ILO 70 Profiles

Solution for individual applications and continuous light-line systems.

The customizable nature of the connectable lighting fixtures inspires bold design that is practical and also sustainable. Its vertical or horizontal linear lines enable you to define spaces, show the direction and expose the architecture. Perfect for shops, schools, lobbies, retail areas, corridors, architectural and similar applications.

Elegant, practical and energy-efficient.

ILO 35

ILO 50

ILO 70

Mounting type

All mounting types

Pendant D

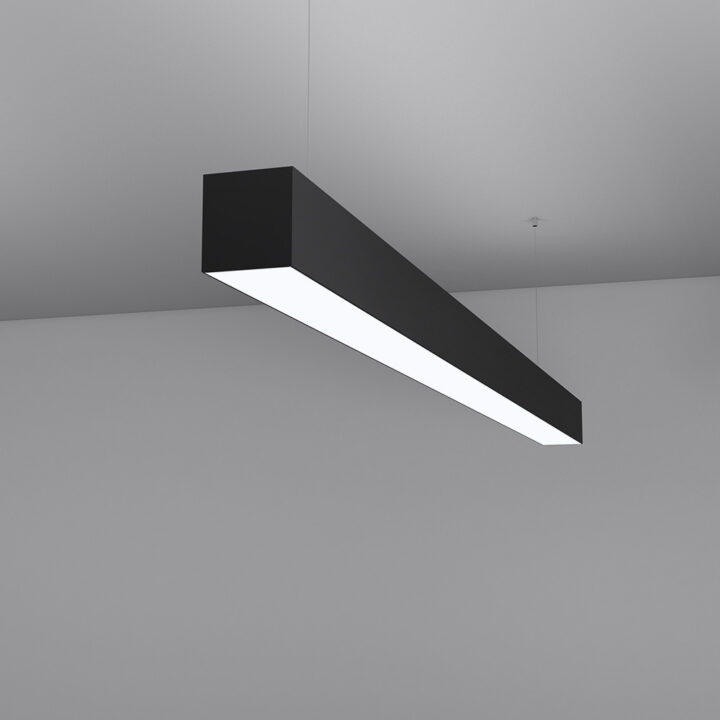

Pendant D/I

Ceiling

Recessed

T-bar

System

* IP 54 avaliable for ILO Recessed from the bottom side up

Technical data

Housing	High-quality aluminium housing with powder coated finish in white RAL 9016, black RAL 9005, grey RAL 9006 or custom color
Sizes	Standard sizes: Recessed: 580 / 650 / ...+/-70... 2820 mm T-BAR: 600 / 1200 / 1800 / 2400 mm Ceiling: 706 / 776 / ...+/-70... 2806 mm Pendant: 706 / 776 / ...+/-70... 2806 mm Pendant Direct/Indirect: 706 / 776 / ...+/-70... 2806 mm Continuous light-line systems non-standard sizes are possible at +/-70mm *non-standard sizes are related to longer delivery times
Luminaire efficacy	115lm/W
System power	16-31 W/m
Color rendering	CRI > 80 / CRI > 90 / CRI > 95 (spectra)
Color consistency	MacAdam Step 3
Light output	High efficiency: 1650lm/m High output: 3200 lm/m
Color temperature (K)	2700 / 3000 / 4000 / 5000K or TW 2700 to 5000K
Lighting control	NoDim / Pull-switch Dim / DALI-2 / 2CH DALI-2 / Casambi / 2CH Casambi
Optics	Prismatic PMMA / OPAL PMMA / Black OPAL PMMA
Options	Through wiring Presence and light sensors Emergency: 1h or 3h* Canopy available to order separately ILO C, ILO P, ILO R: available for dimensions longer than 1682mm ILO PDI: available for dimensions longer than 1962mm
Rated life	L80 B20 at 100.000 h, Ta=25 °C ambient temperature
